船用青铜闸阀
船用青铜闸阀
与时俱进，诚赢客户
控制阀门、自动化设计、优质方案
全国服务热线15370222117
服务热线15370222117
产品型号：Z45W
产品口径：DN25-1200
产品压力：150lb-900lb
产品材质：青铜、黄铜、炮金铜、镍铝青铜
操作方式：手动（Ｍanual），齿轮传动(Gear)，电动Electric，气动(Pneumatic)等
工作温度：－２９℃－６００℃
适用介质：海水，蒸汽，油品等
密封形式：硬密封型
类别 | 150lb | 300LB | ||
Mpa | PSI | Mpa | PSI | |
强度试验 | 3.0 | 450 | 7.7 | 1125 |
高压密封试验（水） | 2.2 | 314 | 5.8 | 815 |
低压密封试验 | 5-7巴Bar | 5-7巴Bar | ||
| 材质名称 | 适用温度 | 适用介质 |
| CF8 | ≤50℃ | |
| OCr18Ni9 | ||
| CF8N | NITRIC ACID | |
| OCr18NiMo2ti | 硝酸类 | |
| CF3 | NITRIC ACID | |
| OOCr18Ni10 | 硝酸类 | |
| CF3M | NITRIC ACID | |
| OOCr17Ni14Mo2 | 硝酸类 |

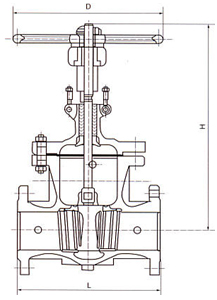

| 公称通径NPS | 单位 | L | D | T | G | C | n-Ф | W | H | |
| in | mm | |||||||||
| 1/2〞 | 15 | mm | 108 | 89 | 12 | 35 | 60.5 | 4-15 | 90 | 188 |
| in | 4.25 | 3.5 | 0.47 | 1.38 | 2.38 | 4-0.59 | 3.54 | 7.40 | ||
| 3/4〞 | 20 | mm | 117 | 98 | 12 | 43 | 70 | 4-15 | 90 | 202 |
| in | 4.61 | 3.86 | 0.47 | 1.69 | 2.76 | 4-0.59 | 3.54 | 7.95 | ||
| 1〞 | 25 | mm | 127 | 108 | 12 | 51 | 79.5 | 4-15 | 100 | 225 |
| in | 5 | 4.25 | 0.47 | 2 | 3.13 | 4-0.59 | 4 | 8.86 | ||
| 11/2〞 | 40 | mm | 165 | 127 | 14.3 | 73 | 98.5 | 4-16 | 200 | 362 |
| in | 6.5 | 5 | 0.56 | 2.88 | 3.88 | 4-0.62 | 8 | 14.25 | ||
| 2〞 | 50 | mm | 178 | 152 | 15.9 | 92 | 120.5 | 4-19 | 200 | 409 |
| in | 7 | 6.00 | 0.625 | 3.62 | 4.75 | 4-0.75 | 8 | 16.1 | ||
| 21/2〞 | 65 | mm | 190 | 178 | 17.5 | 105 | 139.5 | 4-19 | 250 | 500 |
| in | 7.5 | 7 | 0.69 | 4.12 | 5.50 | 4-0.75 | 10 | 19.68 | ||
| 3〞 | 80 | mm | 203 | 190 | 19.1 | 127 | 152.4 | 4-19 | 250 | 570 |
| in | 8 | 7.50 | 0.75 | 5 | 6 | 4-0.75 | 10 | 22.58 | ||
| 4〞 | 100 | mm | 229 | 229 | 23.9 | 157 | 190.5 | 8-19 | 250 | 590 |
| in | 9 | 9 | 0.94 | 6.19 | 7.5 | 8-0.75 | 10 | 23.6 | ||
| 6〞 | 150 | mm | 267 | 279 | 25.4 | 216 | 241.5 | 8-22 | 300 | 630 |
| in | 10.50 | 11 | 1 | 8.5 | 9.50 | 8-0.88 | 12 | 24.8 | ||
| 8〞 | 200 | mm | 292 | 343 | 28.5 | 270 | 298.5 | 8-22 | 350 | 960 |
| in | 11.5 | 13.50 | 1.12 | 10.62 | 11.75 | 8-0.88 | 13.88 | 37.8 | ||
| 10〞 | 250 | mm | 330 | 406 | 30.2 | 342 | 362 | 12-25 | 400 | 1158 |
| in | 13 | 16 | 1198 | 12.75 | 14.75 | 12-1 | 15.7 | 45.6 | ||
| 12〞 | 300 | mm | 356 | 483 | 31.8 | 381 | 432 | 12-25 | 450 | 1378 |
| in | 14 | 19 | 1.25 | 15 | 17 | 12-1 | 17.7 | 54.3 | ||
| 14〞 | 350 | mm | 381 | 533 | 35 | 413 | 476 | 12-29 | 500 | 1543 |
| in | 15 | 21 | 1.38 | 16.25 | 18.75 | 12-1.2 | 79.7 | 60.75 | ||
| 16〞 | 400 | mm | 406 | 597 | 36.6 | 470 | 539.5 | 16-29 | 600 | 1738 |
| in | 16 | 23.5 | 1.44 | 18.5 | 21.25 | 16-1.12 | 23.6 | 68.4 | ||
| 公称通径NPS | 单位 | L | D | T | G | C | n-Ф | W | H | |
| in | mm | |||||||||
| 1/2〞 | 15 | mm- | 140 | 95 | 15 | 35 | 66.5 | 4-15 | 100 | 201 |
| in | 5.51 | 3.74 | 0.59 | 1.38 | 2.62 | 4-0.59 | 4 | 7.91 | ||
| 3/4〞 | 20 | mm | 152 | 117 | 16 | 43 | 82.5 | 4-19 | 100 | 212 |
| in | 5.98 | 4.61 | 0.62 | 1.69 | 3.25 | 4-0.75 | 4 | 8.35 | ||
| 1〞 | 25 | mm | 165 | 124 | 18 | 51 | 89 | 4-19 | 140 | 237 |
| in | 6.5 | 4.9 | 0.71 | 2 | 3.5 | 4-0.75 | 5.51 | 9.33 | ||
| 11/2〞 | 40 | mm | 190 | 156 | 20.7 | 73 | 114.5 | 4-22 | 200 | 407 |
| in | 7.5 | 6.12 | 0.81 | 2.88 | 4.51 | 4-0.88 | 8 | 16.02 | ||
| 2〞 | 50 | mm | 216 | 165 | 22.3 | 92 | 127 | 8-19 | 200 | 424 |
| in | 8.5 | 6.5 | 0.88 | 3.62 | 5 | 8-0.75 | 8 | 16.7 | ||
| 21/2〞 | 65 | mm | 241 | 190 | 25.4 | 105 | 149 | 8-22 | 250 | 265 |
| in | 9.5 | 7.5 | 1 | 4.12 | 5.87 | 8-0.88 | 10 | 18.31 | ||
| 3〞 | 80 | mm | 283 | 210 | 28.5 | 127 | 168.5 | 8-22 | 250 | 535 |
| in | 11.25 | 8.25 | 1012 | 5 | 6.62 | 8-0.88 | 10 | 21 | ||
| 4〞 | 100 | mm | 305 | 254 | 31.8 | 157 | 200 | 8-22 | 250 | 615 |
| in | 12 | 10 | 1.25 | 6.19 | 7.88 | 8-0.88 | 10 | 24.2 | ||
| 6〞 | 150 | mm | 4.3 | 318 | 36.6 | 216 | 270 | 12-22 | 350 | 795 |
| in | 15.875 | 12.5 | 1.44 | 8.5 | 10.62 | 12-0.88 | 140 | 31.3 | ||
| 8〞 | 200 | mm | 419 | 381 | 41.3 | 270 | 330 | 12-25 | 400 | 1012 |
| in | 16.5 | 15 | 1.62 | 10.62 | 12.99 | 12-1 | 15.7 | 39.9 | ||
| 10〞 | 250 | mm | 457 | 444 | 47.7 | 342 | 387.5 | 16-29 | 450 | 1231 |
| in | 18 | 17.50 | 1.88 | 12.75 | 15.25 | 16-1.12 | 17.7 | 48.5 | ||
